Cut-To-Length
Cut-To-Length service involves customising steel materials to specified lengths, providing customers with pre-cut pieces ready for immediate use in their projects.
Inquire Now

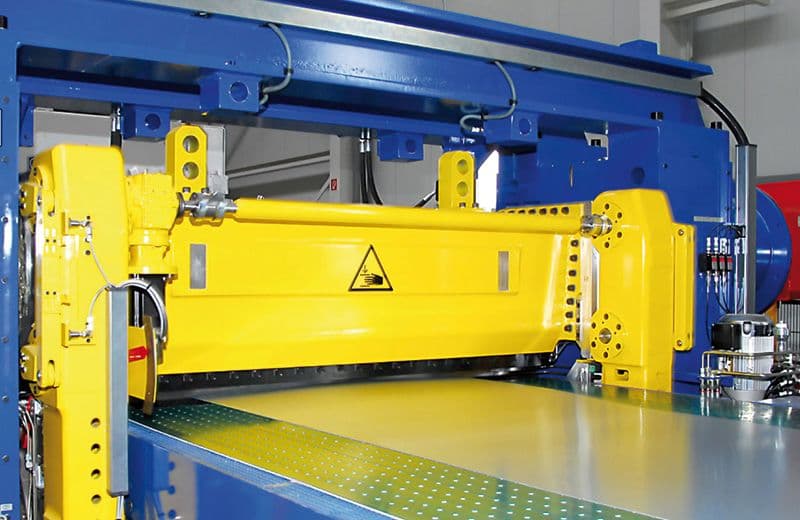

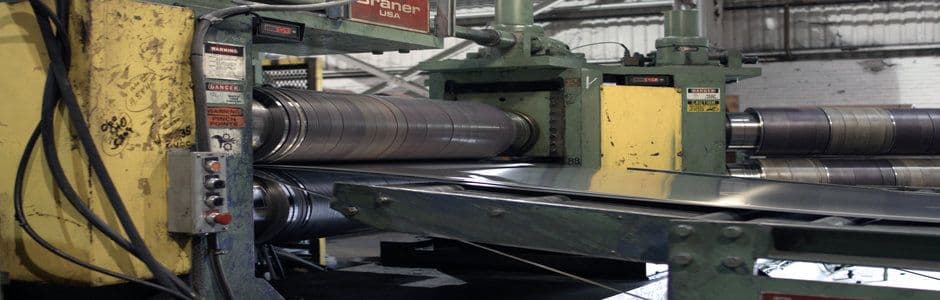

Cut-To-Length machines are used for uncoiling, straightening, cutting to length and stacking sheet metal.
Cut-To-Length machines process metal coil rolls that come from metal mills. Metal coil rolls are unusable in the form they are shipped in, so manufacturers value Cut-To-Length machines highly. A Cut-To-Length machine offers automation to ensure accurate feeding, shearing and flattening. Cut-To-Length machines can be used for various metals in several industries.
| Material Specification | |
|---|---|
Material | CRCA / GP / HR / HRPO |
Thickness | 0.30 to 20.00 mm |
| INPUT COIL SPECIFICATION | |
|---|---|
Coil Outer Diameter | 1800 to 2000 mm |
Coil Inner Diameter | 450 to 500 mm |
Max Coil Weight | 30 tones |
Coil Width (Cut to length line) | 300 mm to 2000 mm |
| OUTPUT SHEET SPECIFICATION | |
|---|---|
Stacker Capacity | 5 to 7 tones |
Sheet Length Min | 600 mm |
Sheet Length Max | 6000 mm |
Accuracy | mm on diagonal / mm on length |
